What is an Easy Open End Production Line? A Manufacturing Guide

The Easy Open End (EOE) is a critical innovation in metal packaging, allowing consumers to open food, beverage, and industrial cans without a specialized tool. Producing these ends requires extreme mechanical precision to ensure the metal scores properly without compromising the vacuum seal.

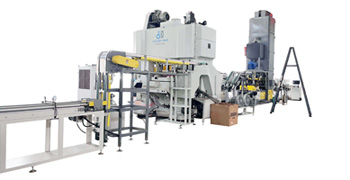

An Easy Open End Production Line is a synchronized series of high-tonnage presses, conversion dies, and lining machines designed to transform flat metal sheets into fully functional, pull-tab can ends. This guide explains the core machinery and the multi-step manufacturing process.

Types of Easy Open End Machinery

EOE production lines are generally categorized by the raw material they process and their output speeds. The equipment configuration varies significantly based on these two factors.

1. By Material Type

• Tinplate EOE Lines: Primarily used for food cans (vegetables, meats, pet food). Tinplate requires higher tonnage presses due to the metal's rigidity and thickness. The tooling must be incredibly robust to maintain the integrity of the score line without fracturing the tin coating.

• Aluminum EOE Lines: Standard for the beverage industry (soda, beer). Aluminum is softer, allowing for ultra-high-speed production. These lines focus heavily on the precision of the tab-making and riveting stations.

2. By Press Architecture

• Portal Press Systems: The straight-side portal press is the backbone of a high-speed EOE line. It provides zero angular deflection during the stamping process, which is mandatory when operating multi-out conversion dies that form several ends per stroke.

• C-Frame Press Systems: Used for lower-speed or highly specialized EOE production. While offering easier access for die changeovers, they are generally reserved for smaller output requirements.

The EOE Manufacturing Process (How It Works)

Transforming a basic metal shell into an Easy Open End involves a specialized conversion press equipped with a multi-stage progressive die. The process follows these exact mechanical steps:

Step 1: Shell Feeding and Bubble Forming

Pre-stamped basic ends (shells) are fed into the conversion press. The first stage stretches the center of the metal to form a distinct "bubble." This bubble will later become the rivet that holds the pull-tab.

Step 2: Scoring

This is the most critical engineering stage. The die stamps a precise circular or oval trench (the score line) into the metal. The residual metal thickness at the bottom of the score must be exact—usually measured in micrometers. If it is too thick, the end will not open; if too thin, the can will burst under internal pressure.

Step 3: Tab Manufacturing and Riveting

Simultaneously, a separate strip of metal (usually aluminum) is fed into the press to form the pull-tab. The completed tab is positioned over the previously formed bubble on the shell. The press then flattens the bubble, creating a permanent mechanical rivet that attaches the tab to the end.

Step 4: Compound Lining and Curing

To ensure the finished EOE creates a hermetic seal when attached to a can body, the inner channel of the end receives a liquid sealing compound. The ends then pass through a drying machine to cure the gasket.

Step 5: Light Testing and Quality Control

High-speed lines incorporate automated optical inspection or light testers to detect microscopic pinholes in the score line or rivet area. Any defective ends are pneumatically ejected from the line.

Sourcing EOE Production Lines

Configuring a reliable EOE manufacturing facility requires exact synchronization between the conversion press, tooling dies, and automated feeders. Zhoushan Golden Wing Machinery Co., Ltd. engineers complete, factory-direct machinery solutions for metal packaging plants worldwide.
